Description:

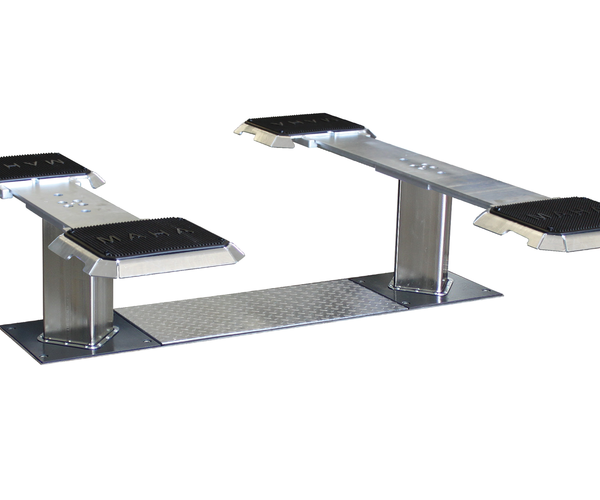

Two-post inground lift with flat head supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

Flat head support (FT H):

  • Flat head extensions adaptable for different vehicle types, telescopic from 1400 ýÿ 2000 mm in standard
  • Flexible, optional range of support plates in 'longer - wider - flatter' versions ensures perfect accommodation of all current and future vehicle models
  • Large pick-up areas due to exchangeable support plate system cover the entire vehicle spectrum
  • Easier, tyre-preserving drive-on thanks to all-round bevelled extensions combined with low construction height and rubber support plate (height no more than approx. 60 mm)
  • Rubber support plate enables time-saving direct pick-up
  • Optional flush-floor installation for easier passing over lift


SQUARE lift unit:

  • Outstanding rigidity and optimum safety thanks to torsion-resistant square posts
  • Low-noise operation due to very quiet motor in the installation box
  • Optionally usable with mineral organic oil with high durability
  • Electronic lift control with no-contact, wear-free limit switches and visual error display
  • Very smooth running due to sliding, long-life special nickel coating on posts with robust, low-maintenance post guide
  • Protected internal hydraulic safety cylinder guarantees lengthy service life
  • Movable synchronisation and safety yoke for redundant operation (acc. to EN DIN 1493)
  • High lifting/lowering speeds are guaranteed in a load-dependent range of 20 ýÿ 30 seconds
  • Integrated, battery-operated emergency lowering
  • Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system


Scope of delivery:

  • Flat head supports, hot-dip galvanised
  • Lift unit with double cylinder and clamping system
  • Wiring and mounting material
  • Installation box/installation frame not included in delivery
  • Emergency lowering cable for connection to switch box
  • Control unit with 2 x 10 m control cable (oil flex cable)
  • Lockable main switch
  • Pinch point protection by CE stopinstead of foot guard
  • Operating instructions
  • CE/UKCA Declaration of conformity


Téléchargements

Documents de vente

Brochures
Fiche Technique

Caractéristiques techniques

Technical data:

Load capacity CE3500 kg
Post distance1350 mm
Longitudinal support extendable in notch steps.
1400 - 2000 mm
Transverse support by repositioning880 - 1820 mm
Size of support plate (L x B)355 x 400 mm
Lifting height max.1948 mm
Installation depth2382 mm
Post dimensions, square180 mm
Lifting/lowering time, load-dependentapprox. 28/20 s
Hydraulic oil quantity (not incl. in delivery) approx. 28 l
Operating pressure140 bar
Recommended installation boxVZ 972555
Control unit (H x W x D)320 x 220 x 120 mm
Drive power3.0 kW
Fuse protection gG16 A
Power supply3/N/PE 400 V 50 Hz
