TRUCKLIFT 4/3 RS 14.0 VP 452094

Détails produit / contenu de la livraison

Description:

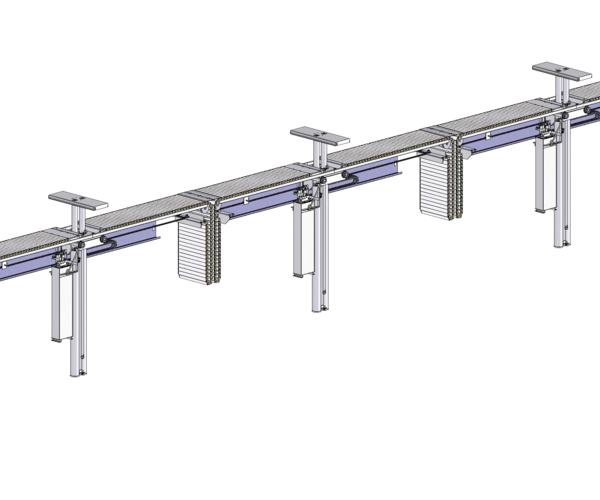

Multi-post system with four lifting units, three of which are
moveable, with surface-mounted vehicle support and
narrow roller cover; modular design

• Flexible and custom-selectable post distance thanks to modular designof individual installation boxes
• Torsion protection through rigid dual post system
• Optimal operational safety thanks to redundant system with two separate hydraulic circuits and additional electronic pressure/leakage monitoringas standard
• Corrosion-resistant hydraulic piston; self-lubricating as piston dips into hydraulic oil with every lift
• Optional use of biodegradable mineral-based oil with long service life
• Space-saving medium-pressure hydraulic unit, mounted on the lifting units, travels with the moveable lifting unit (no hose routing or movement within the installation box)
• Low-noise operation thanks to ultra-quiet motor in the installation box
• Robust roller cover system with electric travel drive, made from pivot bearing aluminium profiles with non-slip surface
• Narrow roller cover with surface-mounted support, can be driven over with wheel loads of up to 4.0 t
• Electronic synchronous control oflifting units for uniform vehicle lifting (as per EN 1493), independent of varying vehicle pick-up point heights, and with robust inductive height sensor system
• Two operating panels (incl. text display) for easy operation of central control and programming unit when moving the lifting units / lifting the vehicle
• High operational flexibility through different operating modes, including group and individual options, enables efficient work performance
• Position memory programme allows pick-up positions of up to 40 vehicles to be stored and recalled at any time
• Cable-connected remote control facilitates and speeds up exact positioning of vehicle support (20 m cable)
• Simple, integrated, pneumatically operated emergency lowering function; also usable in cases of power failure

Delivery contents:

• Four lifting units, three of which are moveable, with S roller cover
• Support crossbar in anthracite grey (RAL 7016)
• 2sets of vehicle support sliders for forged axles with synthetic overlay (VZ 972343)
• 2 sets of hinged vehicle support sliders, height 220 (280) mm (VZ 972340)
• Control cabinet and portable operating panel
• Pre-assembled cable harnesses per lifting unit, length 30 m
• Wiring and mounting materials
• Installation box/installation frame not included
• Lockable main switch
• Operating instructions
• CE declaration of conformity
