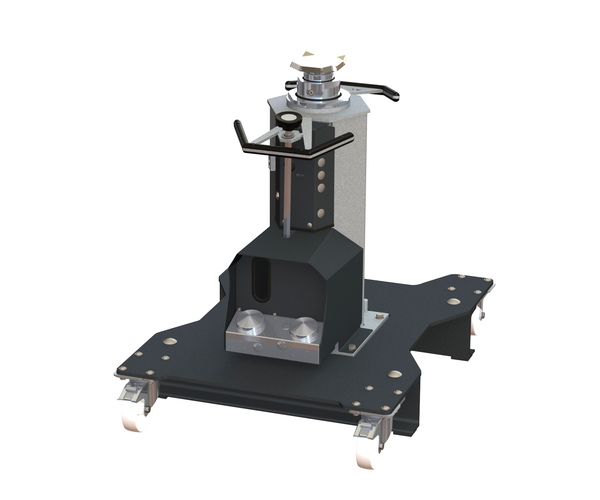

MPJ 16.5/1200 2S FA STOCK VP 454278

L’élévateur pour essieu et transmission permet de lever jusqu’à 16,5 tonnes.
L'élévateur au sol pour essieu et transmission doté d’une double course de piston télescopique (course max. 1 200 mm) est mobile. Il se bloque automatiquement à partir de 1 000 kg. À vide, la commande rapide pneumatique assure un déplacement rapide des deux éléments télescopiques ainsi qu’un retour rapide de la course du piston. L'équipement comprend également un moteur pneumatique avec pédale de contrôle pour le levage de la course de piston sous charge.

Détails produit / contenu de la livraison

2-stage telescopic, free-moving, floor-running

Description:
Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t

Control:

  • Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
  • Efficient fast control for UP and DOWN movement integrated as standard
  • Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
  • Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
  • Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
  • Integrated cover to protect against unintentional operation


Design:

  • Freely movable floor-runnable pit jack for flexible use at various work locations, e.g. workshops or work pit
  • Floor-running carriage with four guide rollers, two of which are fitted with brakes to prevent rolling away (without load)
  • Spring-based roll guard: jack automatically lowers itself to floor once a load capacity of about 1000 kg is reached, securing itself in the process
  • Integrated inspection window for checking oil quality and quantity of the pit jack
  • Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
  • With its non-slip coating the carriage can be used as a secure working platform for ergonomic reasons
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hydro-pneumatic automatic control system
  • Carriage with four guide rollers
  • Standard support lugs 120 x 120 mm
  • Operatinginstructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016

Téléchargements

Documents de vente

Brochures
Prospectus PIT JACK
DE EN
Prospectus (Version imprimable) PIT JACK
DE EN
Fiche Technique
Fiche technique MPJ 16.5/1200 2S FA STOCK
DE EN
Fiche technique (Version imprimable) MPJ 16.5/1200 2S FA STOCK
DE EN

Documentation technique

Dessins de produits
Prospectus PIT JACK Relevé des cotes
DE EN ES FR

Caractéristiques techniques

Technical data:

Load capacity (CE)16,500 kg
Fast stroke power400 kg
Stroke distance1200 mm
Lifting levels2
Min. load pick-up height867 mm
Max. lifting height2067 mm
Carriage (L x W)1010 x 760 mm
Rollers80 mm (polyamide)
Support diameter inside/outside45/80 mm
Piston roddiameter80/115 mm
Oil quantity/quality15.3 l / HLP-D 10
Drive350 l/min. 7-10 bar
Operating pressure235 bar
Weight300 kg
