Détails produit / contenu de la livraison

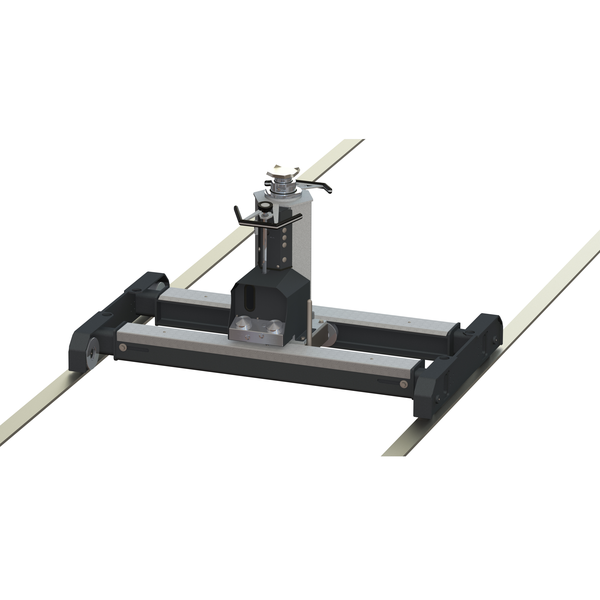

2-stage telescopic, rail-guided, floor-running
Description:
Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t
Control:
- Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
- Efficient fast control for UP and DOWN movement integrated as standard
- Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
- Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
- Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
- Integrated cover to protect against unintentional operation
Design:
- Precision floor-runnable, rail-guided pit jack for easy movement (needle bearings included as standard) of built-on units, including while loaded
- Telescopic carriage for precision adjustment of pit jack lane width to fit the rails in the work pit
- Precision-guided track rollers (flange guided)
- Optional rollers for U profile or wall-guided with flat steelpossible
- Secure jack holding brake in transverse direction across the work pit
- Integrated inspection window for checking oil quality and quantity of the pit jack
- Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
- With its non-slip coating the carriage can be used as a secure working platform for ergonomic reasons
- Corrosion-resistant piston rods thanks to self-lubrication
- High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis
Scope of delivery:
- Pit jack with hydro-pneumatic automatic control system
- Carriage with four interior flanged rollers for rails
- Standard support lugs 120 x 120 mm
- Operating instructions
- EC conformity certificate
- Colour: Jack base frame RAL 7040
- Attachments and carriage RAL 7016
Téléchargements
Documents de vente
Brochures | ||
---|---|---|
Prospectus PIT JACK
|
||
Prospectus (Version imprimable) PIT JACK
|
Fiche Technique | ||
---|---|---|
Fiche technique MPJ 16.5/1200 2S TA
|
||
Fiche technique (Version imprimable) MPJ 16.5/1200 2S TA
|
Documentation technique
Dessins de produits | ||
---|---|---|
Prospectus PIT JACK Relevé des cotes
|
Caractéristiques techniques
Technical data:
Load capacity (CE) | 16,500 kg |
Fast stroke power | 600 kg |
Stroke distance | 1200 mm |
Lifting levels | 2 |
Min. pick-up height | 858 mm |
Max. lifting height | 2058 mm |
Slide rail width inner dimensions | 750 ýÿ 1600 mm |
Carriage adjustable range | 230mm |
Roller rest width | 44 mm |
Roller rest incline | 0 % |
Min. slide rail (W x H) | 75 x 10 mm |
Max. parallelism deviation slide rails | 10 mm |
Roller diameter (at the flange) | 133 (148) mm |
Mount diameter inside/outside | 45/80 mm |
Piston rod diameter | 80/115 mm |
Oil quantity/quality | 15.3 l / HLP-D 10 |
Drive | 350 l/min. 7-10 bar |
Operating pressure | 235 bar |
Weight | 510 kg |
