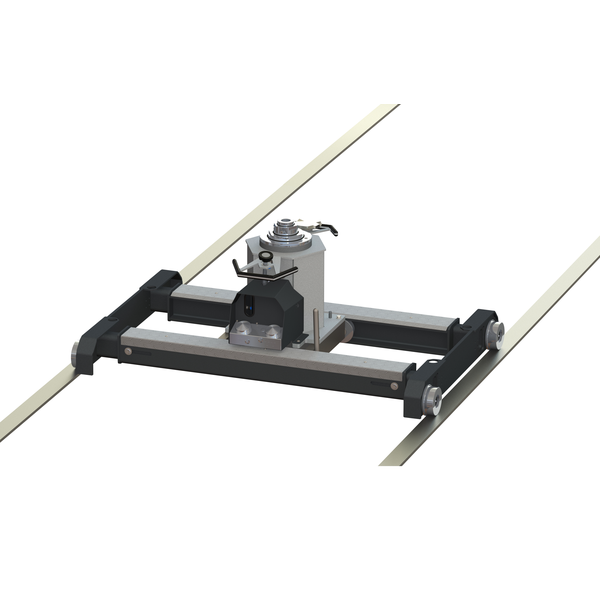

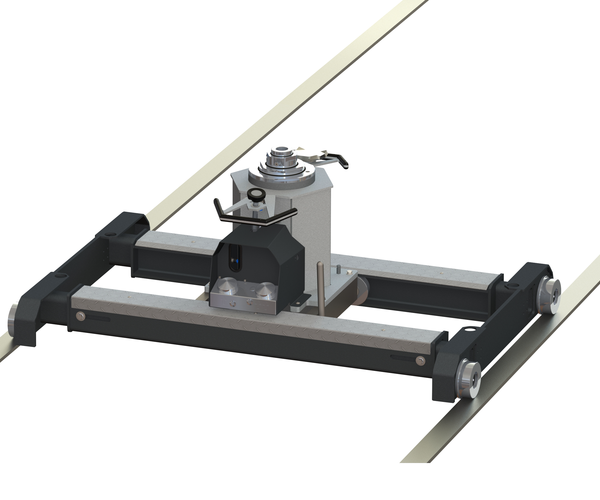

MPJ 16.5/1200 3S TA VP 454282

L’élévateur permet de lever jusqu’à 16,5 tonnes. L'élévateur pour essieu et transmission doté d’une triple course de piston télescopique (course max. 1 200 mm) peut se déplacer le long d’un rail au sol. À vide, la commande rapide pneumatique assure un déplacement rapide des deux éléments télescopiques ainsi qu’un retour rapide de la course du piston. L'équipement comprend également un moteur pneumatique avec pédale de contrôle pour le levage de la course de piston sous charge.

Détails produit / contenu de la livraison

3-stage telescopic, rail-guided, floor-running

Description:
Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t

Control:

  • Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
  • Efficient fast control for UP and DOWN movement Integrated as standard
  • Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
  • Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
  • Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
  • Integrated cover to protect against unintentional operation


Design:

  • Precision floor-runnable, rail-guided pit jack for easy movement (needle bearings included as standard) of built-on units, including while loaded
  • Telescopic carriage for precision adjustment of pit jack lane width to fit the rails in the work pit
  • Precision-guided track rollers (flange guided)
  • Optional wall-guided rollers with flat steel possible
  • Securejack holding brake in transverse direction across the work pit
  • Integrated inspection window for checking oil quality and quantity of the pit jack
  • Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
  • With its non-slip coating the carriage can be used as a secure working platform for ergonomic reasons
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hydro-pneumatic automatic control system
  • Carriage with four interior flanged rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016


Téléchargements

Documents de vente

Brochures
Prospectus PIT JACK
DE EN
Prospectus (Version imprimable) PIT JACK
DE EN
Fiche Technique
Fiche technique MPJ 16.5/1200 3S TA
DE EN
Fiche technique (Version imprimable) MPJ 16.5/1200 3S TA
DE EN

Documentation technique

Dessins de produits
Prospectus PIT JACK Relevé des cotes
DE EN ES FR

Caractéristiques techniques

Technical data:

Load capacity (CE)16,500 kg
Fast stroke power600 kg
Stroke distance1200 mm
Lifting levels3
Min. pick-up height674 mm
Max. lifting height1874 mm
Slide rail width inner dimensions825 ýÿ 1738 mm
Carriage adjustable range230 mm
Roller restwidth44 mm
Roller rest incline0 %
Min. slide rail (W x H)50 x 10 mm
Max. parallelism deviation slide rails10 mm
diameter (at the flange)133 (148) mm
Support diameter inside/outside45/80 mm
Piston rod diameter80/115/170 mm
Oil quantity/quality27.5 l /HLP-D 10
Drive350 l/min. 7-10 bar
Operating pressure190 bar
Weight572 kg
