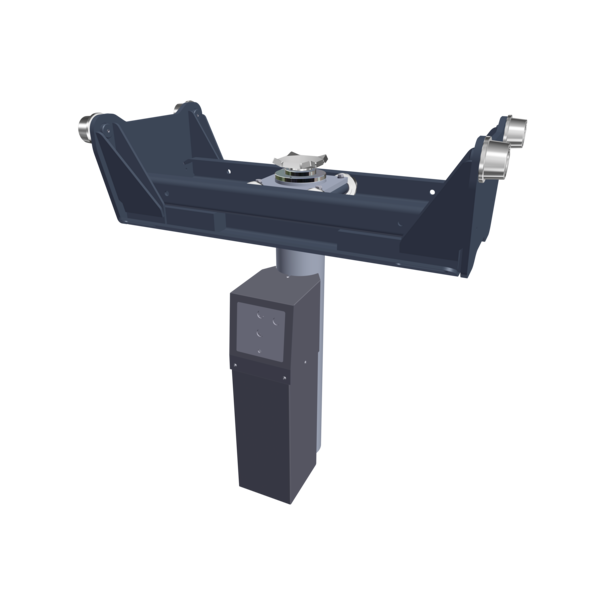

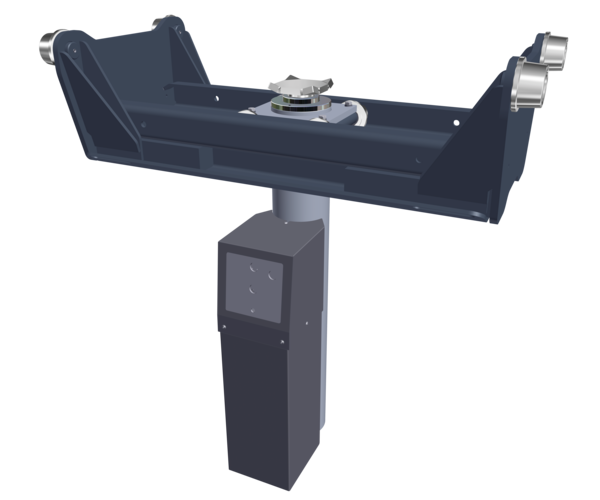

1-stage telescopic, rail-guided, suspended
Description:
Automatic pit jack
Electric automatic pit jack
Specifically for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support systems for lorries and buses with 16.5 t load capac.
Control:
- Electrohydraulic pit jack with low-noise oil-immersed units and automatic electric control
- Up and down control via separate push button
- Adjustable fine tuning of downward speed for the utmost safety during difficult assembly work
Design:
- For precise movement, the pit jack is rail-guided at the top edge of the pit
- Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
- Long total stroke of 750 mm to reach high-up units
- The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
- Alternatively, a straight S carriage can be used too
- Variable modular carriage system for various pit widths (700 - 1200 mm) in conjunction with different roller versions and clearance degrees for adapting to work pit circumstances
- Corrosion-resistant piston rods thanks to self-lubrication
- High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis
Scope of delivery:
- Pit jack with electric automatic control system
- Deep-drawn P carriage and rollers for rails
- Standard support lugs 120 x 120 mm
- Operating instructions
- EC conformity certificate
- Colour: Jack base frame RAL 7040
- Attachments and carriage RAL 7016
Téléchargements
Documents de vente
Brochures | ||
---|---|---|
Prospectus PIT JACK
|
||
Prospectus (Version imprimable) PIT JACK
|
Fiche Technique | ||
---|---|---|
Fiche technique MPJ 16.5/750 1S HAE
|
||
Fiche technique (Version imprimable) MPJ 16.5/750 1S HAE
|
Documentation technique
Dessins de produits | ||
---|---|---|
Prospectus PIT JACK Relevé des cotes
|
Caractéristiques techniques
Technical data:
Load capacity (CE) | 16,500 kg |
Stroke distance | 750 mm |
Lifting levels | 1 |
Min. pick-up height from roller slide rail | - 68 mm |
Pit jack depth for roller slide rail | 1063 mm |
Max. lifting height above roller slide rail | 681 mm |
Slide rail width inner dimensions | 700 ýÿ 1200 mm |
Carraige adjustable range | 140mm |
Roller rest width | 40 mm |
Roller rest incline | 8 % / 4.6° |
Max. parallelism deviation slide rails | 10 mm |
Roller diameter (at the flange) | 80 (95) mm |
Mount diameter inside/outside | 45/90 mm |
Piston rod diameter | 90 mm |
Cable length | 5 m |
Drive power | 2.5 kW |
gG fuse | 16 A |
Power supply | 3/N/PE 400 V 50 Hz |
Oil quantity/quality | 14.5 l / HLP-D 22 |
Drive | Electrohydraulic |
Operating pressure | 254 bar |
Weight | 277 kg |
