MPJ 20.0/750 1S TA VP 454284

Détails produit / contenu de la livraison

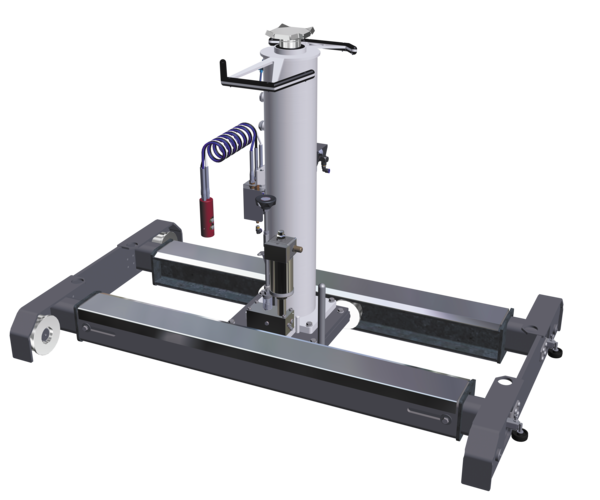

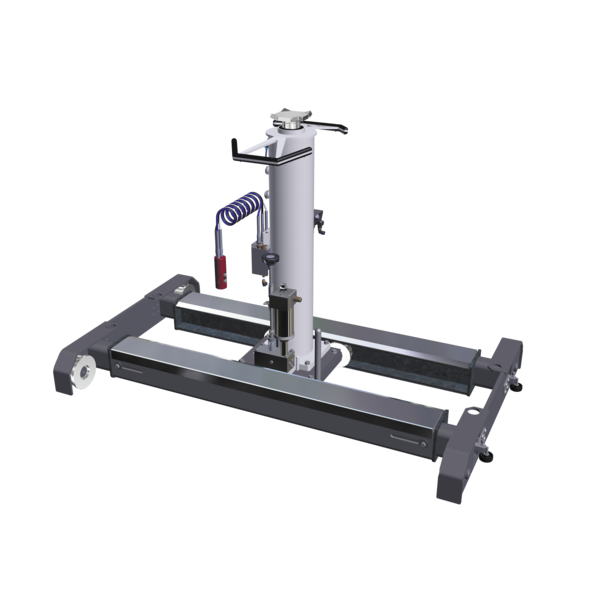

1-stage telescopic, rail-guided, floor-running

Description:
Automatic pit jack
with pneumatic motor and fast control
Specifically for wheel/brake works in conjunction with axle
lifting beams and support systems for trucks and buses
with 20.0 t load capacity

Control:

• Efficient fast control for UP and DOWN movement integrated as standard
• Precision, user-friendly, pneumatic manual control cylinder with magnetic bracket for convenient and flexible quick stroke and load lifting with enlarged view into operator radius
• Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control

Design:

• Precision floor-runnable, rail-guided pit jack for easymovement (needle bearings included as standard) of built-on units, including while loaded
• Telescopic carriage for precision adjustment of pit jack lane width to fit the rails in the work pit
• Precision-guided track rollers (flangeguided)
• Optional rollers for U profile or wall-guided with flat steel possible
• Secure jack holding brake in transverse direction across the work pit
• Almost unobstructed passage through the work pit thanks to floor-running carriage
• Piston support can be increased by max. 2 x 200 mm (option for very deep pits)
• Integrated inspection window for checking oil quality and quantity of the pit jack
• With its non-slip coating the carriage can be used as a secureworking platform for ergonomic reasons
• Corrosion-resistant piston rods thanks to self-lubrication
• High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis

Scope of delivery:

• Pit jack with hydro-pneumatic automatic control system
• Carriage with four interior flanged rollers for rails
• Standard support lugs 120 x 120 mm
• Operating instructions
• EC conformity certificate
• Colour: Jack base frame RAL 7040
  • Attachments and carriage RAL 7016
