1-stage telescopic, rail-guided, suspended
Description:

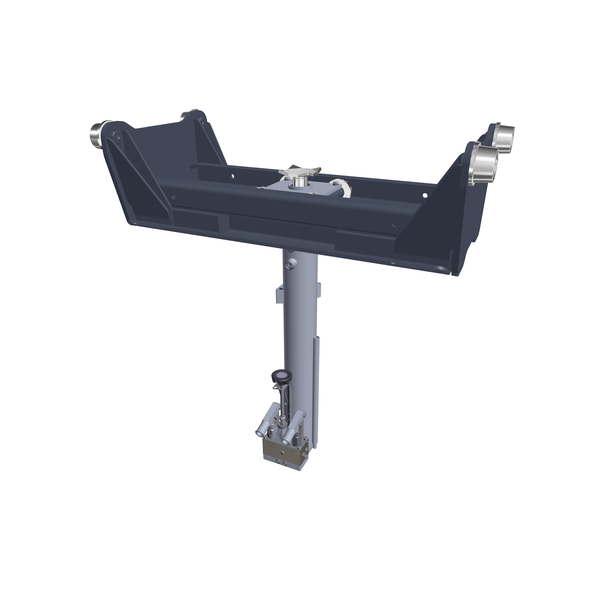

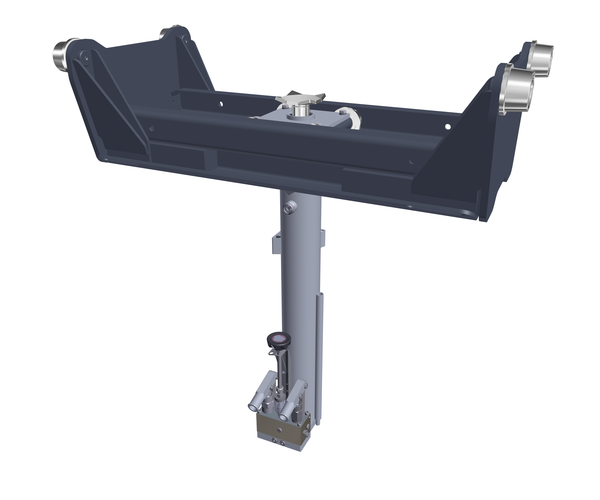

Manual pit jack
with hand pump for load lifting
Specially for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support stands for cars and vans with 4.0 t load capacity
Control:
- Precision, user-friendly hand pump for fast stroke and lift
- Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
Design:
- For precise movement, the pit jack is rail-guided at the top edge of the pit
- Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
- Long total stroke of 750 mm to reach high-up units
- The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
- Alternatively, a straight S carriage can be used too
- Variable modular carriage system for various pit widths (700 - 1200 mm) in conjunction with different roller versions and clearance degrees for adapting to work pit circumstances
- Corrosion-resistant piston rods thanks to self-lubrication
- High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis
Scope of delivery:
- Pit jack with hand pump
- Deep-drawn P carriage and rollers for rails
- Standard support lugs 120 x 120 mm
- Operating instructions
-EC conformity certificate
- Colour: Jack base frame RAL 7040
- Attachments and carriage RAL 7016
Téléchargements
Documents de vente
| Brochures | ||
|---|---|---|
|
Prospectus PIT JACK
|
||
|
Prospectus (Version imprimable) PIT JACK
|
||
| Fiche Technique | ||
|---|---|---|
|
Fiche technique MPJ 4.0/750 1S HM
|
||
|
Fiche technique (Version imprimable) MPJ 4.0/750 1S HM
|
||
Documentation technique
| Dessins de produits | ||
|---|---|---|
|
Prospectus PIT JACK Relevé des cotes
|
||
Caractéristiques techniques
Technical data:
| Load capacity (CE) | 4,000 kg |
| Stroke distance | 750 mm |
| Lifting levels | 1 |
| Min. pick-up height from roller slide rail | - 69 mm |
| Pit jack depth for roller slide rail | 1070 mm |
| Max. lifting height above roller slide rail | 681 mm |
| Slide rail width inner dimensions | 700 ýÿ 1200 mm |
| Carriage adjustable range | 140 mm |
| Roller rest width | 40 mm |
| Roller rest incline | 8 % / 4.6° |
| Max. parallelism deviation slide rails | 10 mm |
| Roller diameter (at the flange) | 80 (95) mm |
| Support diameter inside/outside | 30/45 mm |
| Piston rod diameter | 60 mm |
| Oil quantity/quality | 3.3 l / HLP-D 10 |
| Drive | Manual hydraulic |
| Operating pressure | 144 bar |
| Weight | 198 kg |
